Modern Process Orchestration

SAUG Melbourne Conference Nov. 2015

Sascha Wenninger (@sufw)

This presentation is online:

http://slides.BlueT.com.au/saug2015po

About Me

Integration guy

Member of Blue T

SAP Mentor and tweeter

Burger aficionado

Context

MMG

Growing, mid-sized global mining company

Multi-year investment in Enterprise IT systems

Some very important interfaces

Small team: efficiency & skills

Challenges

Balance

Modern	vs.	Practical
Quality	vs.	Budget
Solid	vs.	Nimble

Some Ideas

Innovation Tokens

"Choose Boring Tech"

Boring ≠ Bad

Use new/unproven tech only where it matters

Optimise Globally (Architecture! ☺)

You should really read this!

DevOps

One team.

Dev to improve Ops

Ops Experience to improve Dev

Mappings

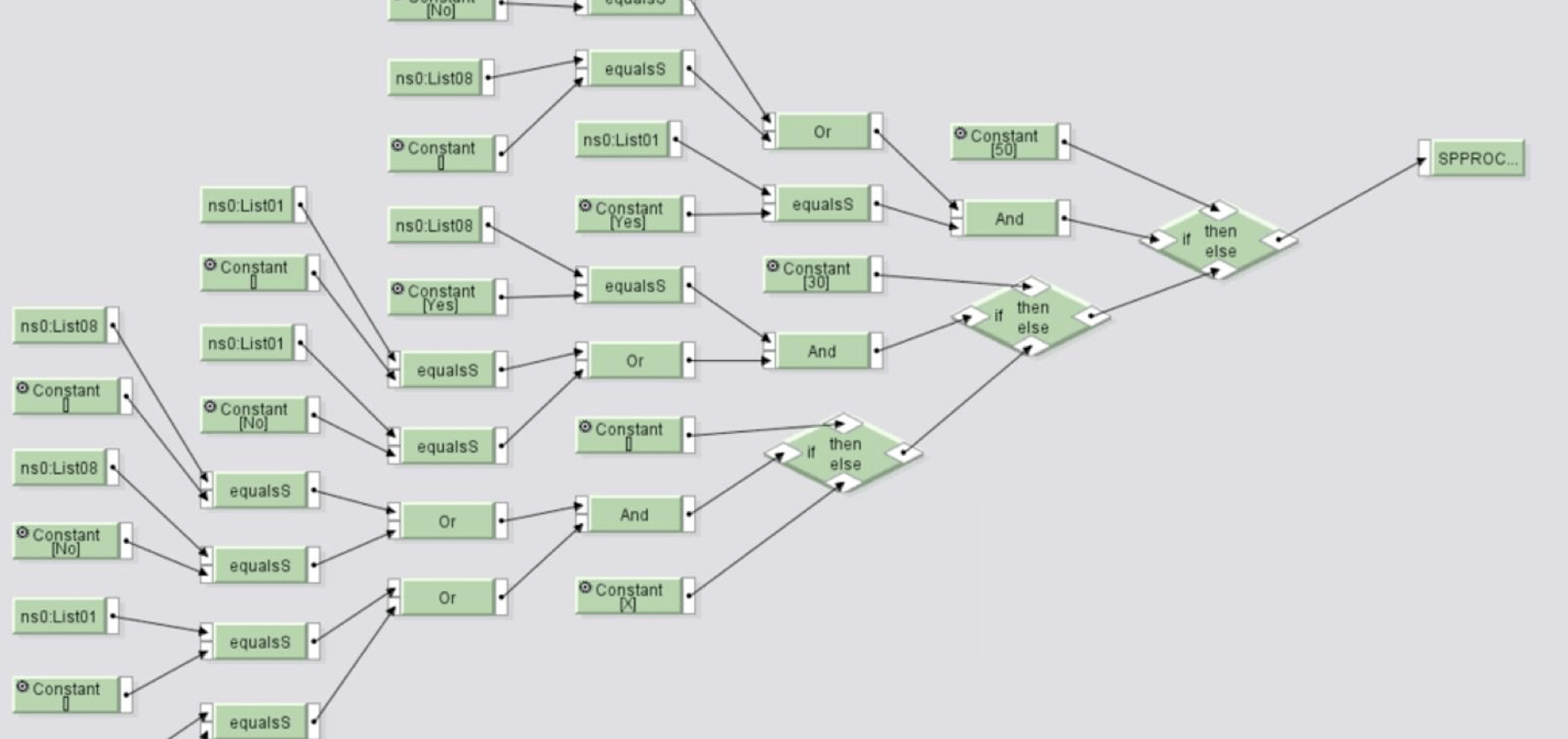

Graphical Mapping

Drag & Drop
"default" choice
Looks Simple

Image courtesy of Daniel Graversen

Image courtesy of Jason Scott

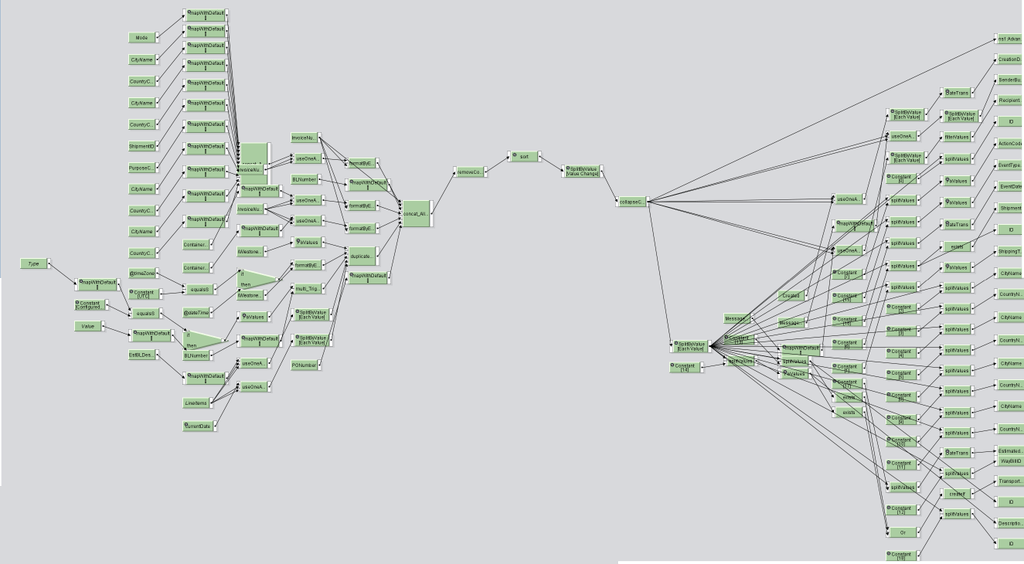

However...

Gets unwieldy, quickly
Not documentable without other tools
Context-Hell is always near

XSLT

Portable

Standard language

Used by most middleware systems

Collaboration! :-)

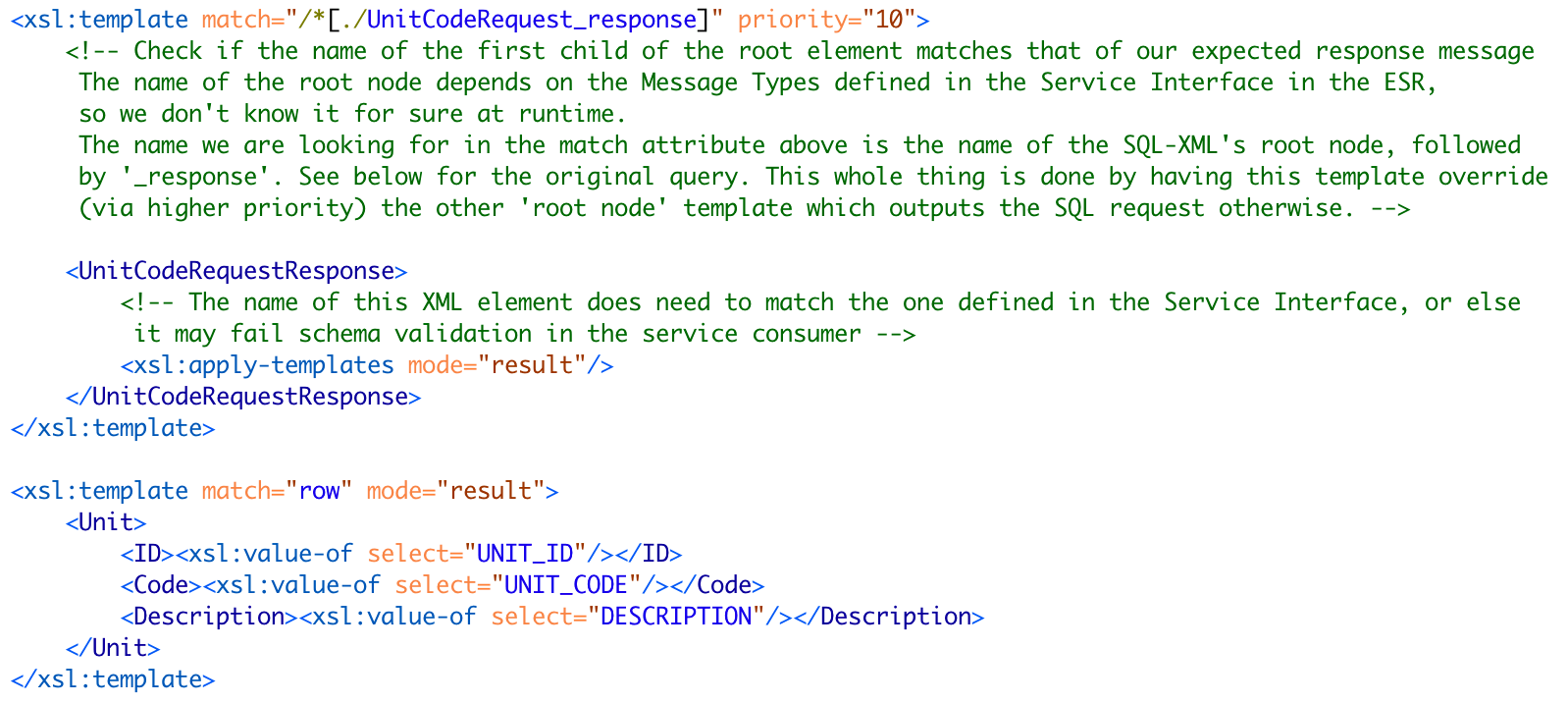

Documentable

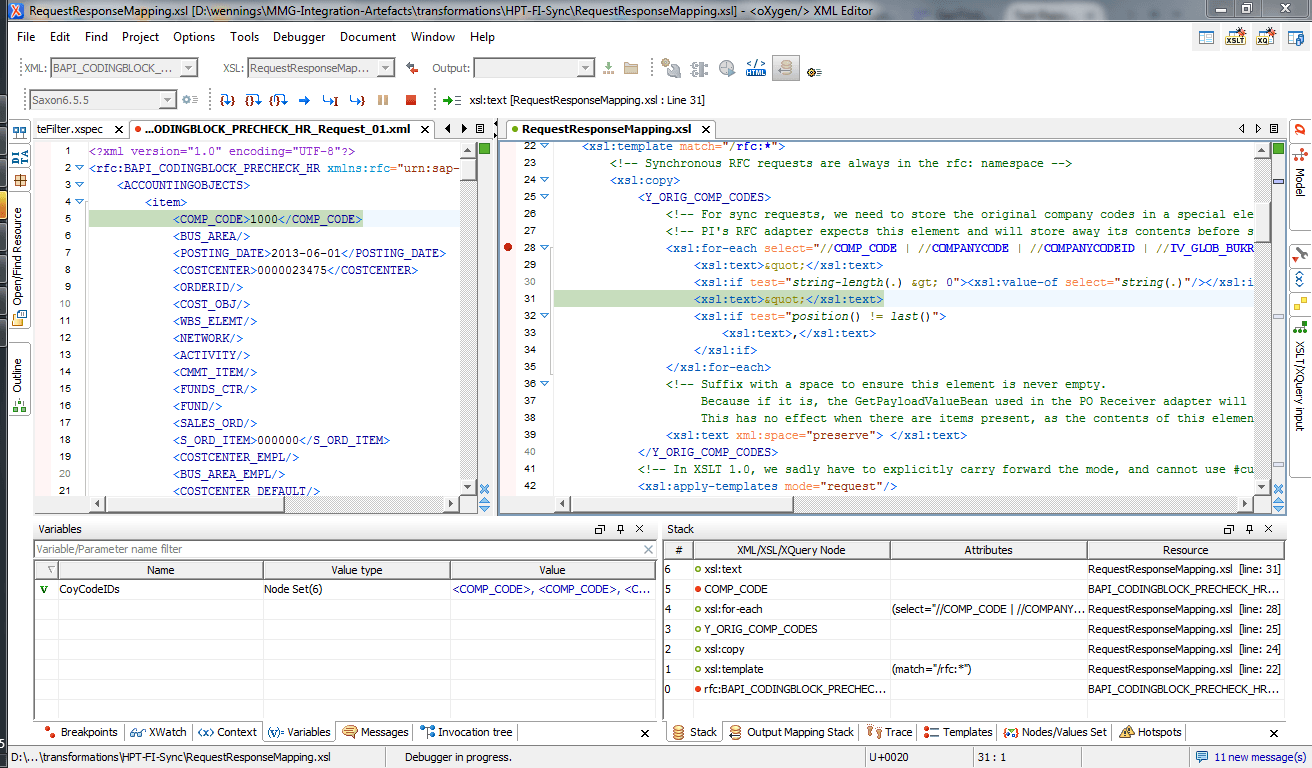

Tools: Debug!

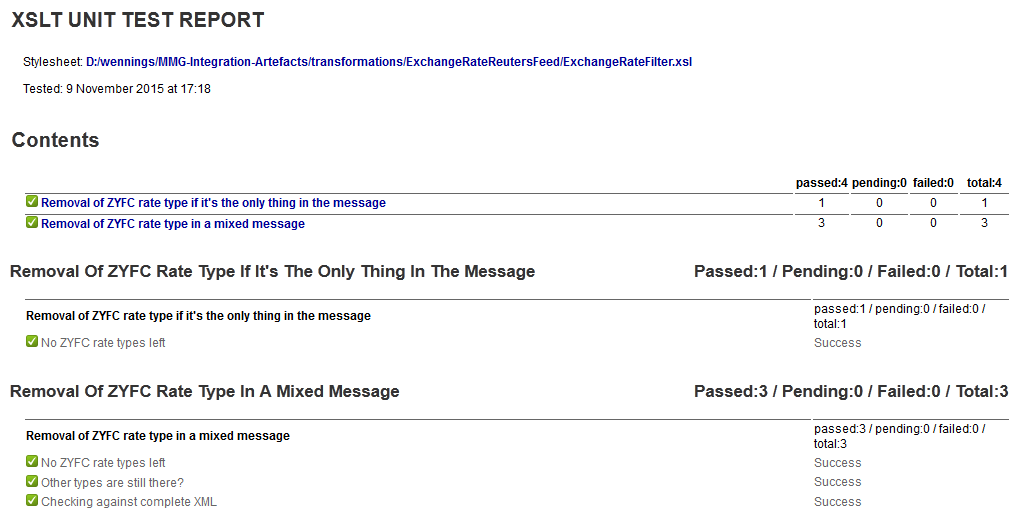

Tools: Unit Tests

e.g. using XSpec

Define input XML
XPath assertions on output, and/or
Expected XML output







                    USD
                    AUD
                    1.20613
                    M
                    2014-12-10


                    CAD
                    HKD
                    7.07113562438128
                    ZYFC
                    2014-12-10

                ...

Watch a Demo by the creator Jeni T

Tools: StackOverflow

Image courtesy of Geek & Poke

Performance

In most cases a non-issue

Used to be dicey before 7.10

AusPost's "POSLog" interface used only XSLT for 1m+ messages/day

Challenges

Grouping: The Muenchian Method

First Name	Last Name	Last Name	First Name
Marie	Curie	Becquerel	Henri
Henri	Becquerel	Curie	Marie
Pierre	Curie	Curie	Pierre

Basically the GROUP BY clause in SQL...

XSLT 1.0

Adapted from template solution by Jeni T.

XSLT 2.0

Makes many things much simpler!

Supported in a limited way from PI 7.31 SP11

Alternative: Java wrapper.

XSLT 2.0

...

And lots of other improvements...

XSLT 2.0

Now supported in 7.31 and later!

Source Control

Needed a way to address shortcomings of the ESR:

conflicts with concurrent edits
visibility/blame
non-code artefacts (e.g. scripts)

Image courtesy of xkcd

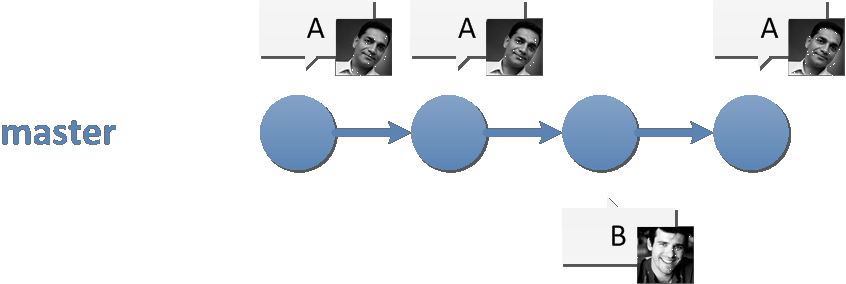

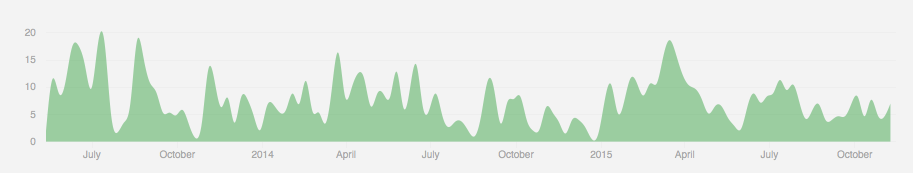

Started simple

Initial learning curve

Discipline required

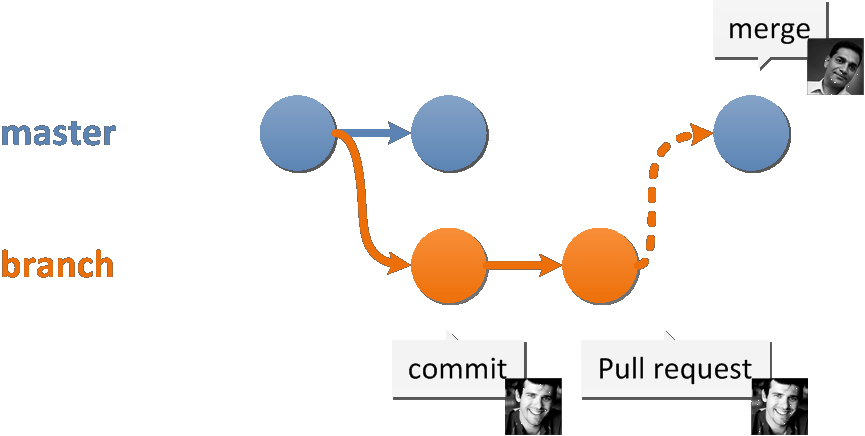

Be Polite: Pull Requests

Possibilities

Code reviews before merging into master

Offshore development: Only trusted devs have merge rights

Avoid edit conflicts

What's Next?

An SAP tool for Github code review!

Alerting

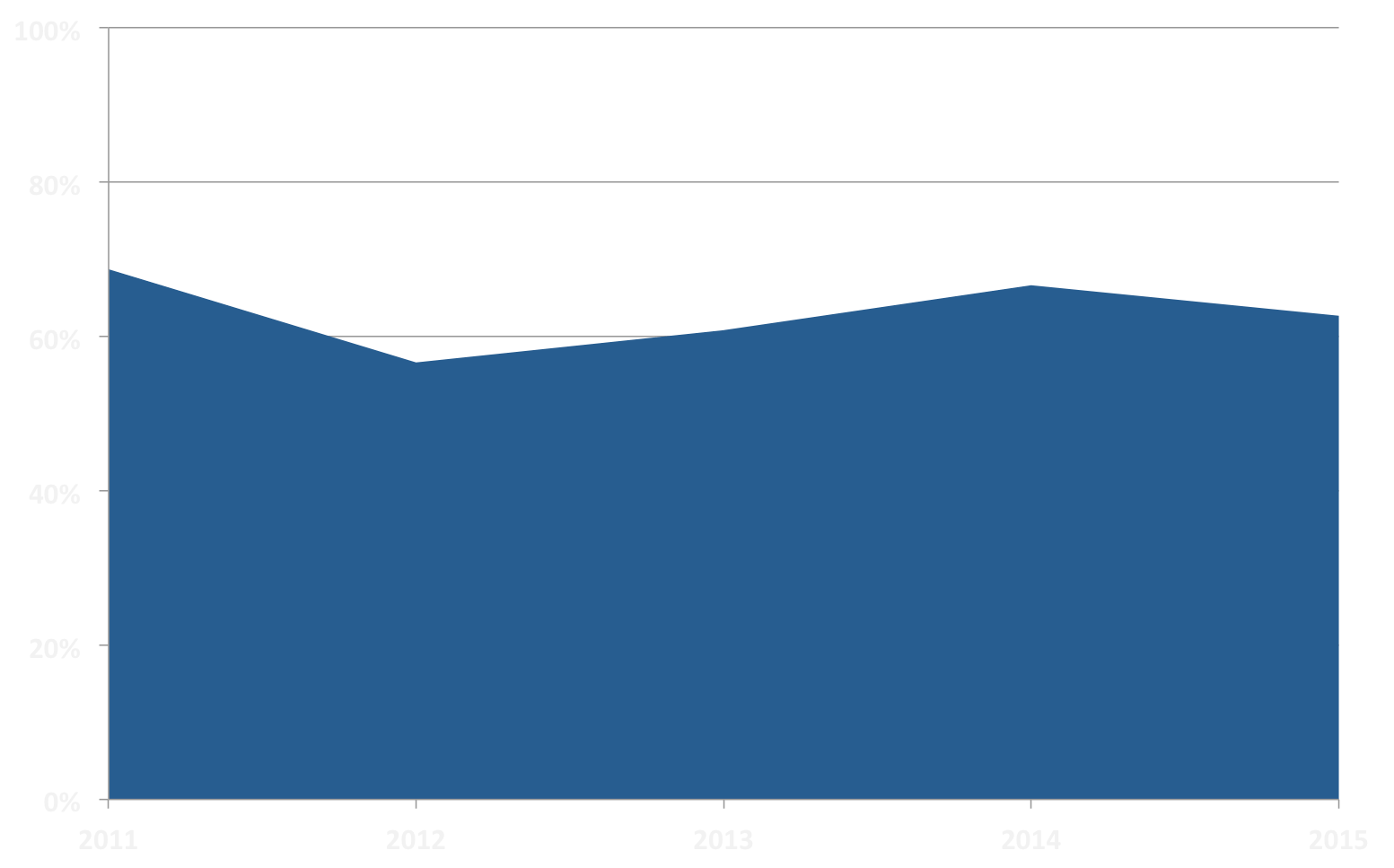

"Monitoring is Still a Big Issue" - IFG for PI Survey

SAP Standard

Traditional Alert Framework

Since 7.3: also Component-Based Message Alerting & SolMan

Difficult to set up; very sparse documentation

SolMan as central monitor, polls other systems for alerts

Lots of noise & false positives

IFG Survey

25% adoption

Barriers:

20%: org issues
15%: lack of skills

MMG's Journey

Alert Framework

⇧

CBMA

⇧

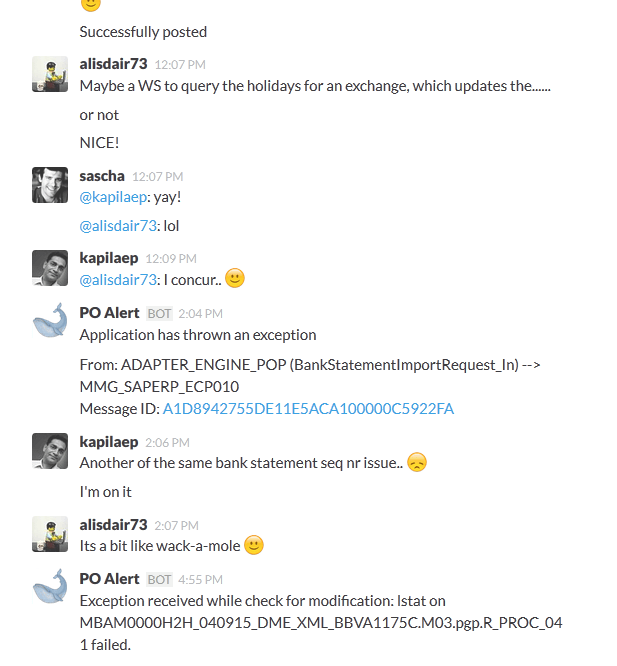

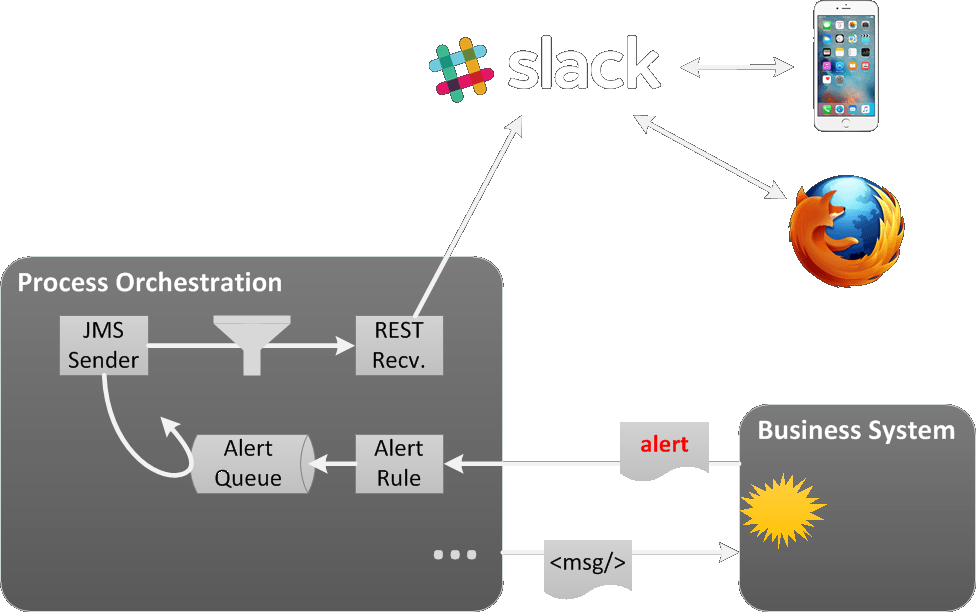

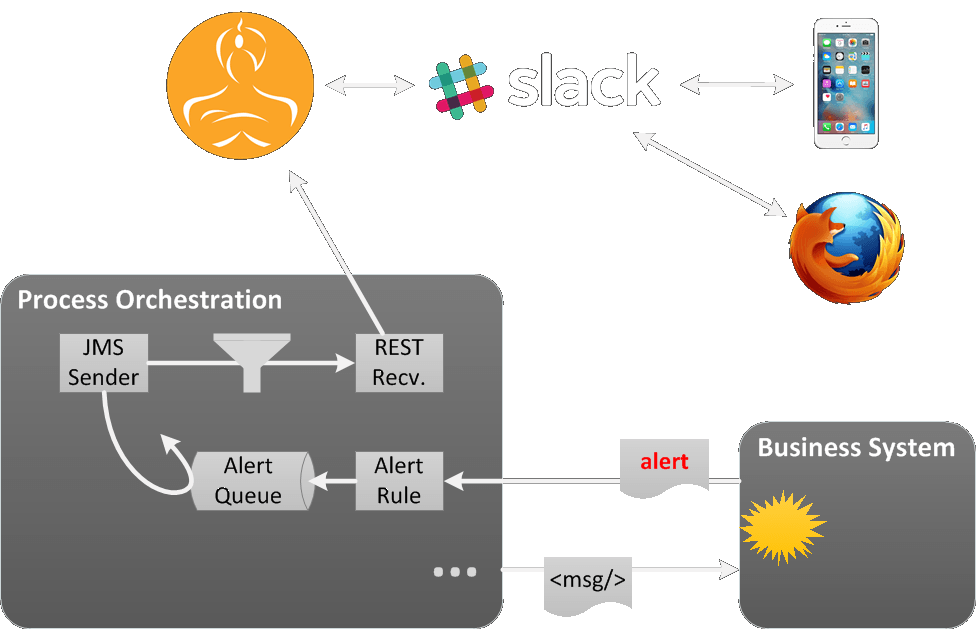

Custom Solution

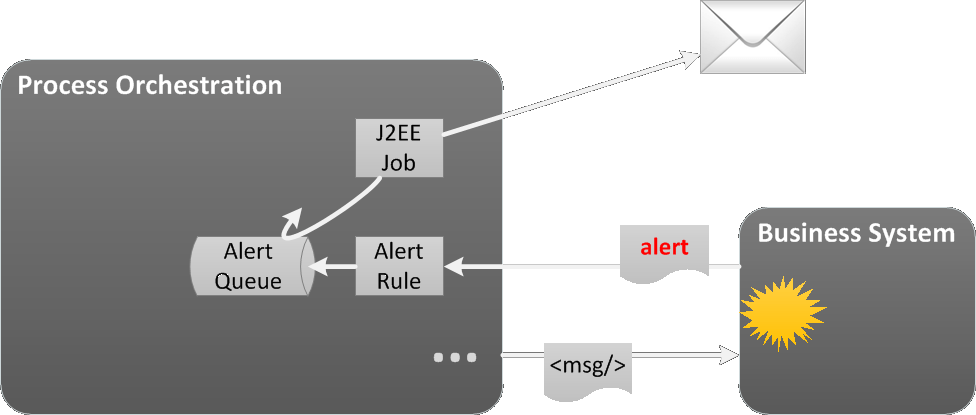

Alert Framework

Challenges

Brittle

Noise

Email == Spam

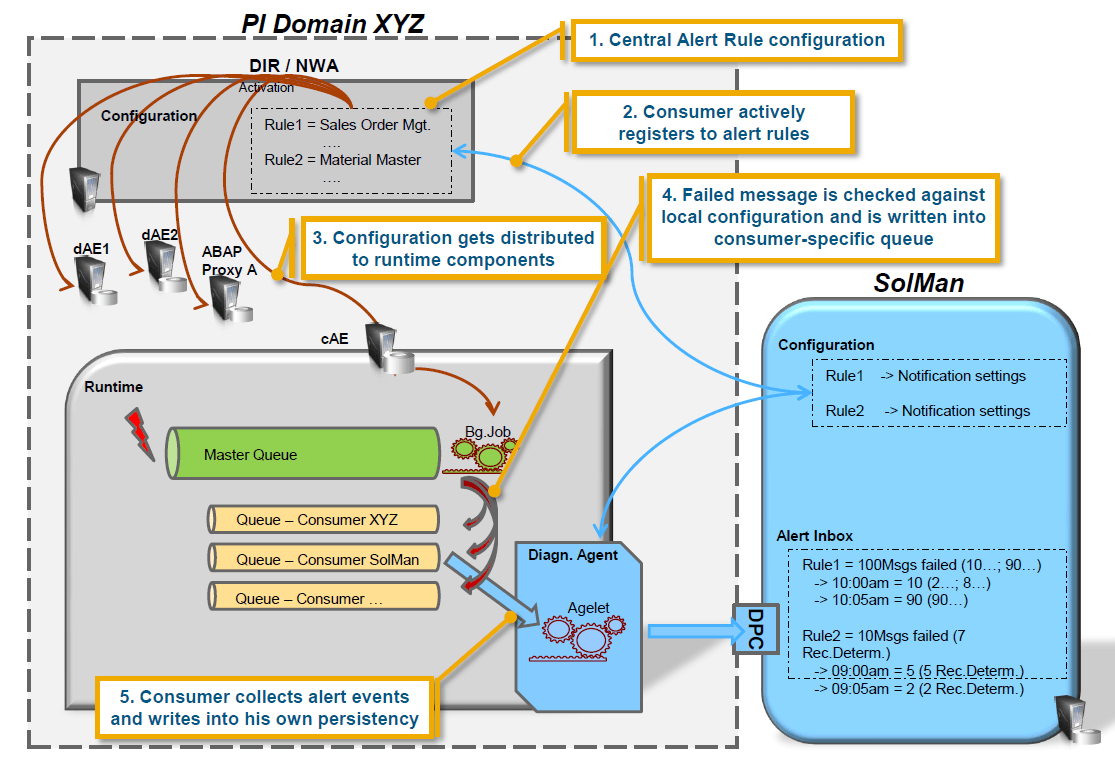

CBMA

Challenges

Brittle

Noise

Email == Spam

More Complex! :-(

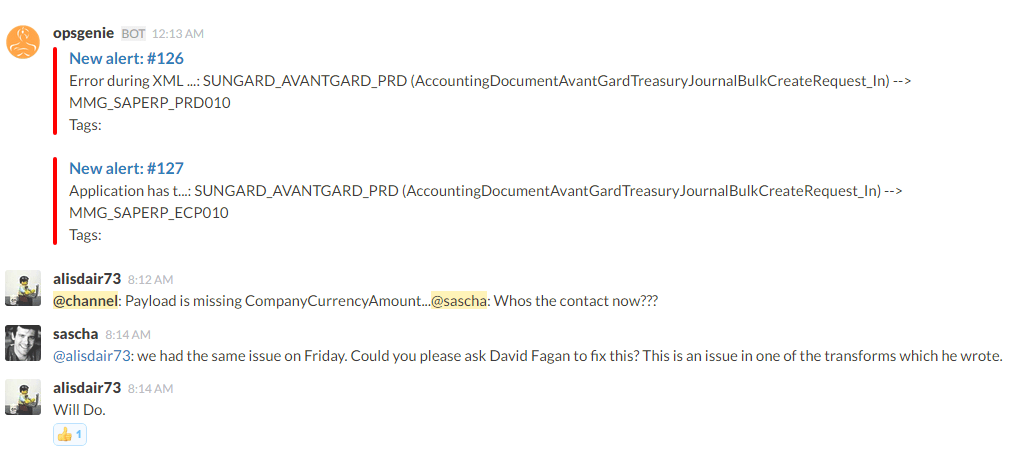

                [null]1 message failed for "DEFAULT_ALERTRULE" on "MMG_SAPERP_PRD010" {
"Component": "MMG_SAPERP_PRD010",
"ErrCat": "Application",
"ErrCode": "ABAP.APPLICATION_ERROR",
"ErrLabel": "2000",
"ErrParams": {},
"ErrText": "Application has thrown an exception",
"FromParty": "",
"FromService": "SUNGARD_AVANTGARD_PRD",
"Interface": "AccountingDocumentAvantGardTreasuryJournalBulkCreateRequest_In",
"MonitoringUrl": "http://host:port/sap/bc/gui/sap/its/webgui/SE61_DISPTXT?~transaction=*SXI_SHOW_MESSAGE%20MSGGUID=56D34B27536511E4B7A700000C5922FA",
"MsgId": "56D34B27536511E4B7A700000C5922FA",
"Namespace": "http://mmg.com/p2m/sap_appl",
"RuleId": "d42a9af9fdc53609843f5a1d9f211911",
"Timestamp": "2014-10-14T05:45:54Z",
"ToParty": "",
"ToService": "MMG_SAPERP_PRD010"
}
